Product details
PS Foam Frame Production Line
- Update：2016-09-18 15:29:46
- Class：
- Model：
- Price：
- TAG：
Instructions

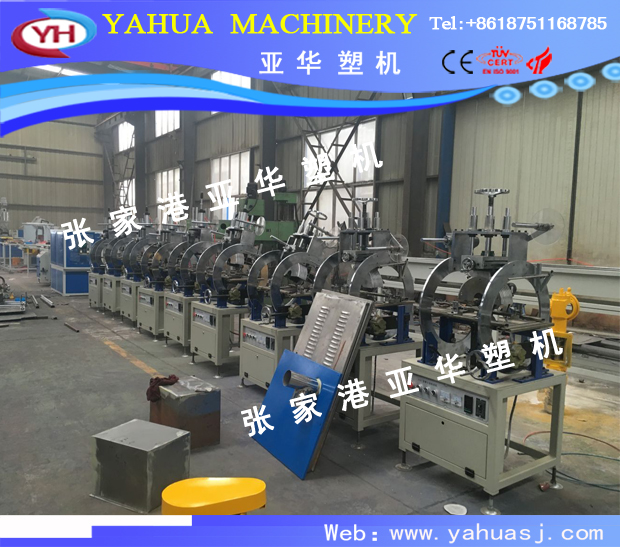

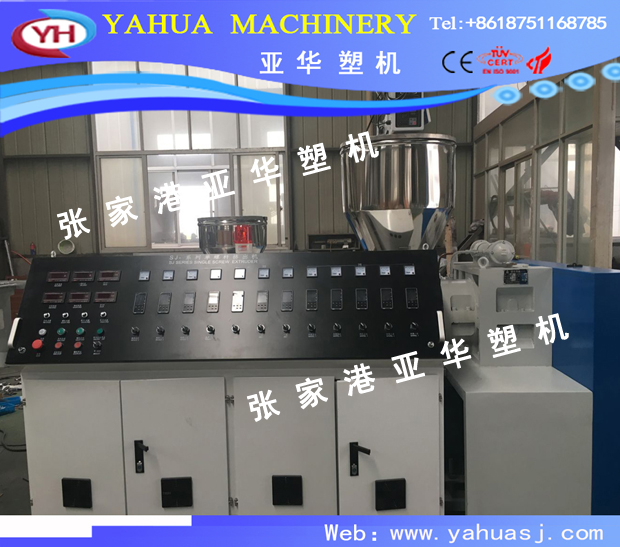

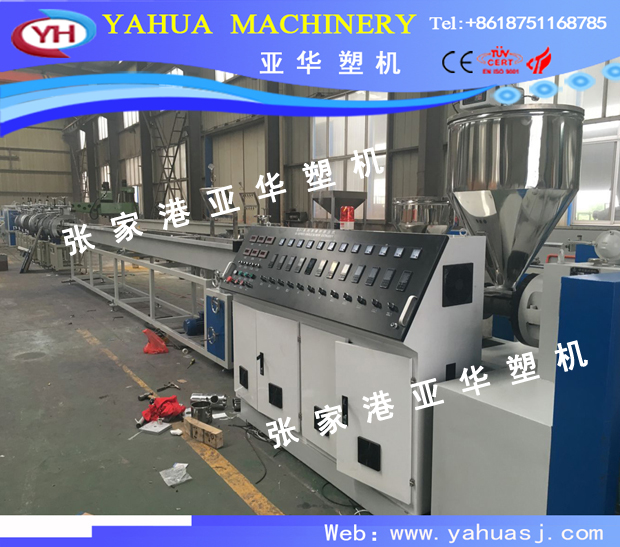

PS foam profile production line is mainly composed of PS foam profile special single screw extruder and complete extruder co-extrusion, cooling water tank, heat transfer units, tractor, cutting machine, double rack. The machine speed control system is equipped with the inverter control, components, such as import temperature control instrument has good plasticizing, high yield, stable operation, etc. Is the new plastic machinery industry development of a new type of production equipment. Including heat transfer unit is based on import prototype design improvements, it is mainly with the method of thermal printing, the color on the ribbon imprinted on the picture frame material. The machine appearance, reliable performance, and precision stamping, strong adsorption capacity. And the adjusting handwheel can stamping all kinds of different shapes of different profile.
Parameter
|
model
|
PS65
|
PS90
|
PS100
|
PS120
|
PS150
|
|
production line speed
|
1~6m/min
|
1~4 m/min
|
1~4 m/min
|
1~3.5 m/min
|
1~3 m/min
|
|
Installed power
|
about50KW
|
about85KW
|
about95KW
|
about120KW
|
about160KW
|
|
Overall dimensions
|
26*2*1.8(m)
|
32*2*2(m)
|
33*2*2.2（m）
|
34*2.5*2.2(m)
|
36*2.5*2.5(m)
|
